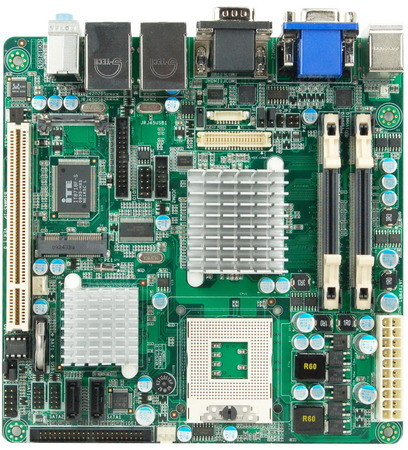

MB-GM45
Specifications:
Mobile Socket P support Intel Core 2 Duo Mobile Penryn/
Core 2 Extreme / Celeron M (575/585) CPU
2 x 200pin DDR2 800/667 SO-DIMM up to 4GB
Dual view support via 24bit LVDS/VGA/HDMI
1 x PCI slot and 1 x Mini PCI-Ex1 slot
1 x LPC interface for extra 4 COM ports add-on card expand
Dual Gigabit LAN, 2 x COM, 8 x USB 2.0, 2 x SATAII,
1 x Printer port, 5.1CH HD Audio integrated
Chipset:
Intel GM45 / ICH9M
CPU SUPPORT
Intel Core 2 Extreme
Intel Celeron M
Intel Core 2 Duo Mobile Penryn
MEMORY
2 x DDR2 SO-DIMM Memory Slot
Max. Supports up to 4GB Memory
EXPANSION SLOT
1 x PCI
1 x Mini-PCIe Slot
GRAPHICS
ntel GM45 intergrated Gen 5.0 Graphics engine
AUDIO
Realtek ALC662 5.1-Channel HD Audio
LAN
2 x Intel 82574L - 10/100/1000 Transceiver
SUPER I/O CHIP
ITE IT8718F (128pin)
REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 2.0
1 x RS-232
2 x HDMI
1 x D-Sub
2 x GbE
3 x Audio jack (Line-in/Line-out/Mic)
INTERNAL I/O
2 x SATA Connector
1 x IDE 44 Pin, 2.0 Pitch
2 x USB 2.0 Header (each support 2 devices)
1 x Serial Header
1 x LVDS Connector
1 x Parallel Header
1 x Front Panel Header
1 x DIO(GPIO) Header
1 x ATX Power Connector
OS SUPPORT
Support Windows XP / XPe
Support Linux
DIMENSION
170mm x 170mm ( W x L )
ATATX
AT / ATX selection |
