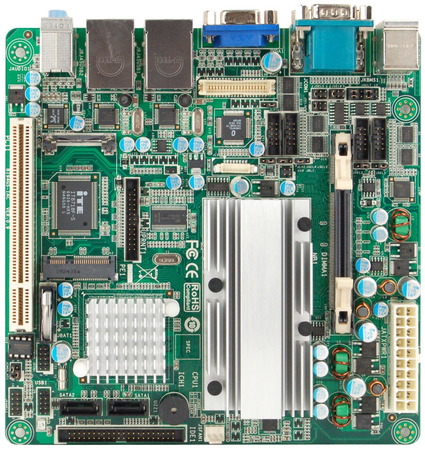

MB-I945GSE  for    Ultra-slim  System

Specification
MB-I945GSE Specifications:
Intel Mobile Atom N270 (1.6GHz) processor onboard
6 x COM (five for RS232; one for RS232/422/485)
One DDR2 533 SO-DIMM up to 2GB
Dual View support via LVDS and VGA
24bit Dual channel LVDS
Mini PCI-E and PCI expansion slot
Dual Gigabit LAN, 2 x SATA, 6 x USB 2.0, 1 x Printer port
5.1CH HD Audio integrated
Chipset:
  Intel 945GSE / ICH7M
CPU SUPPORT

  • On-Board IntelŪ Atom™ N270 (1.6GHz) Mobile Processor
    		•
    MEMORY

  • 1 x DDR2 SO-DIMM Memory Slot
  • Max. Supports up to 2GB Memory
    		•
    EXPANSION SLOT

  • 1 x PCI SLOT (Riser Card Optional )
  • 1 x mini PCIe SLOT
    		•
    GRAPHICS

  • Intel Graphics Media Accelerator 950, On Board Graphic Max. Share Memory Up To 224MB
    		•
    AUDIO

  • Realtek ALC662 5.1-Channel HD Audio
    		•
    GbE

  • 2 x Realtek RTL8111DL - Integrated 10/100/1000 Transceiver
    		•
    SUPER I/O CHIP

  • ITE IT8718F (128pin)
    		•
    REAR I/O

  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 4 x USB 2.0
  • 2 x RS-232
  • 1 x D-Sub
  • 2 x GbE
  • 3 x Audio jack (Line-in/Line-out/Mic)
    		•
    INTERNAL I/O

  • 1 x SATA Connector
  • 1 x IDE 44 Pin, 2.0 Pitch
  • 1 x USB 2.0 Header (each support 2 devices)
  • 4 x Serial Header
  • 1 x LVDS Connector
  • 1 x Parallel Header
  • 1 x Front Panel Header
  • 1 x DIO(GPIO) Header
  • 1 x ATX Power Connector
    		•
    OS SUPPORT

  • Support Windows 7  /XP / XPe
  • Support Linux
    • DIMENSION

  • 170mm x 170mm ( W x L )
    		•
    ENVIRONMENT

  • Working Temperature 0 ~ 60°C
  • Relative Humidity 10% ~90%
    		•
    ATATX

  • AT / ATX selection
    		•
