Rack PDUs |
|
| Specification |
|
|

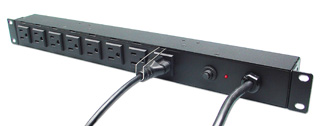

Basic PDU Provide reliable power distribution via a single input with multiple output receptacles and distributes power. |
|
|

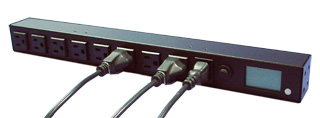

Metered PDU (LCD) Provide advanced and various power information on LCD monitor, including voltage, current, frequency, power factor, VA and kWh . |
|
|
Metered PDU (LED) Provide advanced and various power information on LED monitor, including voltage, current. |
|
|
Metered PDU (Dual LED) Provide advanced and various power information on Dual LED Digital Display, including voltage, current at same time. |
|
|
Metered PDU (AC Ammeter) Provide advanced and various power information on AC Ammeter. |
|
| IP
Metered PDU Provide advanced and various power information on LCD monitor, including voltage, current, frequency, power factor, VA and kWh . Allows an administrator to monitor PDU power consumption information from a remote web browser. This can be helpful if a remote machine has gone into a power overload state and an administrator can handle immediately to avoid power disaster. |
|
| IP

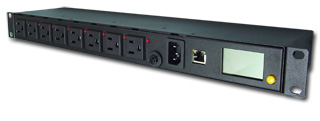

Switched PDU Provide advanced and various power information on LCD monitor, including voltage , current, frequency, power factor, VA and kWh. Supports remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management. and remote monitor total outlets power consumption through web browser. |
|
| IP
Switched Pro PDU Provide advanced and various power information on LCD monitor, including voltage , current, frequency, power factor, VA and kWh. Supports remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management. and remote monitor every outlets power consumption through web browser. |
|
| Ordering Information: | |
| Rack Power Distribution | Nominal Input votage | Maximum Total Current | Output Connections | Input Connections | Type |
Dimensions (LxWxH) |
Model No. |
| Basic PDU | 110V~220V |
15A/20A |
NEMA 5-15R (8) | NEMA 5-15P | 1U | 440x42x42 | PDU-B-515R(8)-515P |
| 110V~220V |
15A/20A |
NEMA 5-15RL (8) | NEMA 5-15P | 1U | 440x42x42 | PDU-B-515RL(8)-515P | |
| 110V |
20A |
NEMA 5-15R (8) | NEMA L5-20P | 1U | 440x42x42 | PDU-B-515R(8)-L520P | |
| 110V |
30A |
NEMA 5-20R (8) | NEMA L5-30P | 1U | 440x42x42 | PDU-B-520R(8)-L530P | |
| 110V |
20A |
NEMA 5-15R (16) | NEMA L5-20P | 0U | 800x42x42 | PDU-B-515R(16)-L520P | |
| 110V |
30A |
NEMA 5-20R (16) | NEMA L5-30P | 0U | 800x42x42 | PDU-B-520R(16)-L530P | |
| 110V |
30A |
NEMA 5-15R (24) | NEMA L5-30P | 0U | 1160x42x42 | PDU-B-515R(24)-L530P | |
| 110V |
30A |
NEMA 5-20R (24) | NEMA L5-30P | 0U | 1160x42x42 | PDU-B-520R(24)-L530P | |
| 110V~220V |
10A/15A |
IEC 320 C13 (8) | IEC-320 C14 | 1U | 440x42x42 | PDU-B-C13(8)-C14 | |
| 110V~220V |
10A/15A |
IEC 320 C13 (12) | IEC-320 C14 | 1U | 440x42x42 | PDU-B-C13(12)-C14 | |
| 110V~220V |
20A |
IEC 320 C13 (16) | IEC-320 C20 | 0U | 800x42x42 | PDU-B-C13(16)-C20 | |
| Metered PDU (LCD Meter) | 110V~220V |
15A/20A |
NEMA 5-15R (8) | NEMA 5-15P | 1U | 440x42x42 | PDU-M-515R(8)-515P |
| 110V~220V |
15A/20A |
NEMA 5-15RL (8) | NEMA 5-15P | 1U | 440x42x42 | PDU-M-515RL(8)-515P | |
| 110V |
20A |
NEMA 5-15R (8) | NEMA L5-20P | 1U | 440x42x42 | PDU-M-515R(8)-L520P | |
| 110V |
20A |
NEMA 5-15R (16) | NEMA L5-20P | 0U | 800x42x42 | PDU-M-515R(16)-L520P | |
| 110V |
30A |
NEMA 5-15R (24) | NEMA L5-30P | 0U | 1160x42x42 | PDU-M-515R(24)-L530P | |
| 110V |
30A |
NEMA 5-20R (24) | NEMA L5-30P | 0U | 1160x42x42 | PDU-M-520R(24)-L530P | |
| 110V~220V |
10A/15A |
IEC 320 C13 (8) | IEC-320 C14 | 1U | 440x42x42 | PDU-M-C13(8)-C14 | |
| 110V~220V |
10A/15A |
IEC 320 C13 (12) | IEC-320 C14 | 1U | 440x42x42 | PDU-M-C13(12)-C14 | |
| 110V~220V |
20A |
IEC 320 C13 (16) | IEC-320 C20 | 0U | 800x42x42 | PDU-M-C13(16)-C20 | |
| Metered PDU (LED Meter) | 110V~220V |
15A/20A |
NEMA 5-15R (8) | NEMA 5-15P | 1U | 440x42x42 | PDU-ME-515R(8)-515P |
| 110V~220V |
15A/20A |
NEMA 5-15RL (8) | NEMA 5-15P | 1U | 440x42x42 | PDU-ME-515RL(8)-515P | |
| 110V |
20A |
NEMA 5-15R (8) | NEMA L5-20P | 1U | 440x42x42 | PDU-ME-515R(8)-L520P | |
| 110V |
20A |
NEMA 5-15R (16) | NEMA L5-20P | 0U | 800x42x42 | PDU-ME-515R(16)-L520P | |
| 110V |
30A |
NEMA 5-15R (24) | NEMA L5-30P | 0U | 1160x42x42 | PDU-ME-515R(24)-L530P | |
| 110V |
30A |
NEMA 5-20R (24) | NEMA L5-30P | 0U | 1160x42x42 | PDU-ME-520R(24)-L530P | |
| 110V~220V |
10A/15A |
IEC 320 C13 (8) | IEC-320 C14 | 1U | 440x42x42 | PDU-ME-C13(8)-C14 | |
| 110V~220V |
10A/15A |
IEC 320 C13 (12) | IEC-320 C14 | 1U | 440x42x42 | PDU-ME-C13(12)-C14 | |
| 110V~220V |
20A |
IEC 320 C13 (16) | IEC-320 C20 | 0U | 800x42x42 | PDU-ME-C13(16)-C20 | |
| Metered PDU (Dual LED Meter) | 110V~220V |
15A/20A |
NEMA 5-15R (8) | NEMA 5-15P | 1U | 440x42x42 | PDU-ME2-515R(8)-515P |
| 110V~220V |
15A/20A |
NEMA 5-15RL (8) | NEMA 5-15P | 1U | 440x42x42 | PDU-ME2-515RL(8)-515P | |
| 110V |
20A |
NEMA 5-15R (8) | NEMA L5-20P | 1U | 440x42x42 | PDU-ME2-515R(8)-L520P | |
| 110V |
20A |
NEMA 5-15R (16) | NEMA L5-20P | 0U | 800x42x42 | PDU-ME2-515R(16)-L520P | |
| 110V |
30A |
NEMA 5-15R (24) | NEMA L5-30P | 0U | 1160x42x42 | PDU-ME2-515R(24)-L530P | |
| 110V |
30A |
NEMA 5-20R (24) | NEMA L5-30P | 0U | 1160x42x42 | PDU-ME2-520R(24)-L530P | |
| 110V~220V |
10A/15A |
IEC 320 C13 (8) | IEC-320 C14 | 1U | 440x42x42 | PDU-ME2-C13(8)-C14 | |
| 110V~220V |
10A/15A |
IEC 320 C13 (12) | IEC-320 C14 | 1U | 440x42x42 | PDU-ME2-C13(12)-C14 | |
| 110V~220V |
20A |
IEC 320 C13 (16) | IEC-320 C20 | 0U | 800x42x42 | PDU-ME2-C13(16)-C20 | |
| Metered PDU (AC Ammeter) | 110V~220V |
15A/20A |
NEMA 5-15R (8) | NEMA 5-15P | 1U | 440x42x42 | PDU-MA-515R(8)-515P |
| 110V~220V |
15A/20A |
NEMA 5-15RL (8) | NEMA 5-15P | 1U | 440x42x42 | PDU-MA-515RL(8)-515P | |
| 110V |
20A |
NEMA 5-15R (8) | NEMA L5-20P | 1U | 440x42x42 | PDU-MA-515R(8)-L520P | |
| 110V |
20A |
NEMA 5-15R (16) | NEMA L5-20P | 0U | 800x42x42 | PDU-MA-515R(16)-L520P | |
| 110V |
30A |
NEMA 5-15R (24) | NEMA L5-30P | 0U | 1160x42x42 | PDU-MA-515R(24)-L530P | |
| 110V |
30A |
NEMA 5-20R (24) | NEMA L5-30P | 0U | 1160x42x42 | PDU-MA-520R(24)-L530P | |
| 110V~220V |
10A/15A |
IEC 320 C13 (8) | IEC-320 C14 | 1U | 440x42x42 | PDU-MA-C13(8)-C14 | |
| 110V~220V |
10A/15A |
IEC 320 C13 (12) | IEC-320 C14 | 1U | 440x42x42 | PDU-MA-C13(12)-C14 | |
| 110V~220V |
20A |
IEC 320 C13 (16) | IEC-320 C20 | 0U | 800x42x42 | PDU-MA-C13(16)-C20 | |
|
IP Metered PDU (LCD IP Meter) |
110V~220V |
15A |
NEMA 5-15R (8) | NEMA 5-15P | 1U | 440x52x42 | PDU-IM-515R(8)-515P |
| 110V |
20A |
NEMA 5-15R (8) | NEMA L5-20P | 1U | 440x52x42 | PDU-IM-515R(8)-L520P | |
| 110V |
20A |
NEMA 5-15R (16) | NEMA L5-20P | 0U | 800x52x42 | PDU-IM-515R(16)-L520P | |
| 110V |
30A |
NEMA 5-15R (24) | NEMA L5-30P | 0U | 1160x52x42 | PDU-IM-515R(24)-L530P | |
| 110V |
30A |
NEMA 5-20R (24) | NEMA L5-30P | 0U | 1160x52x42 | PDU-IM-520R(24)-L530P | |
| 110V~220V |
10A/15A |
IEC 320 C13 (8) | IEC-320 C14 | 1U | 440x52x42 | PDU-IM-C13(8)-C14 | |
| 110V~220V |
20A |
IEC 320 C13 (16) | IEC-320 C20 | 0U | 800x52x42 | PDU-IM-C13(16)-C20 | |
| IP Switched PDU | 110V~220V |
15A |
NEMA 5-15R (8) | NEMA 5-15P | 1U | 440x105x42 | PDU-IS-515R(8)-515P |
| 110V |
20A |
NEMA 5-15R (8) | NEMA L5-20P | 1U | 440x105x42 | PDU-IS-515R(8)-L520P | |
| 110V |
20A |
NEMA 5-15R (16) | NEMA L5-20P | 0U | 800x70x42 | PDU-IS-515R(16)-L520P | |
| 110V |
30A |
NEMA 5-15R (24) | NEMA L5-30P | 0U | 1160x70x42 | PDU-IS-515R(24)-L530P | |
| 110V |
30A |
NEMA 5-20R (24) | NEMA L5-30P | 0U | 1160x70x42 | PDU-IS-520R(24)-L530P | |
| 110V~220V |
10A/15A |
IEC 320 C13 (8) | IEC-320 C14 | 1U | 440x105x42 | PDU-IS-C13(8)-C14 | |
| 110V~220V |
20A |
IEC 320 C13 (16) | IEC-320 C20 | 0U | 800x70x42 | PDU-IS-C13(16)-C20 | |
| IP Switched Pro PDU | 110V~220V |
15A |
NEMA 5-15R (8) | NEMA 5-15P | 1U | 440x105x42 | PDU-ISP-515R(8)-515P |
| 110V |
20A |
NEMA 5-15R (8) | NEMA L5-20P | 1U | 440x105x42 | PDU-ISP-515R(8)-L520P | |
| 110V |
20A |
NEMA 5-15R (16) | NEMA L5-20P | 0U | 800x70x42 | PDU-ISP-515R(16)-L520P | |
| 110V |
30A |
NEMA 5-15R (24) | NEMA L5-30P | 0U | 1160x70x42 | PDU-ISP-515R(24)-L530P | |
| 110V |
30A |
NEMA 5-20R (24) | NEMA L5-30P | 0U | 1160x70x42 | PDU-ISP-520R(24)-L530P | |
| 110V~220V |
10A/15A |
IEC 320 C13 (8) | IEC-320 C14 | 1U | 440x105x42 | PDU-ISP-C13(8)-C14 | |
| 110V~220V |
20A |
IEC 320 C13 (16) | IEC-320 C20 | 0U | 800x70x42 | PDU-ISP-C13(16)-C20 |
|
The specifiction and
pictures are subject to change without notice.
