SH-KVM-108C |
|
| SH-KVM-108C | |
| Specification |
|

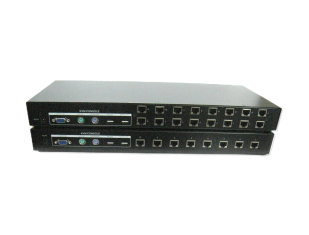

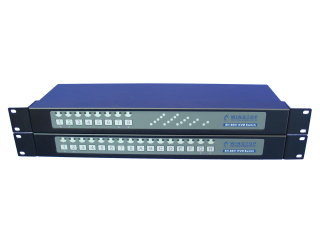

| 8,16 PORT Cat5 KVM Switch (USB + PS/2) | |
| *Heavy-duty steel electroplated for chassis | |
| Cat5
KVM
switch (USB + PS/2) 8/16 Port Cat5 KVM switch (108C/116C) -Supported OS DOS,Win NT/9x/2000/2003/Me/XP,Linux,Unix,Novell,Free BSD,Solaris. -Up to 8,16 RJ-45 inputs (8,16 PCs) -Cascade control Max. up to 64/256 PCS -Intelligent keyboard and mouse simulation, all PCs can booting in the same time. -No software Required-Computer selection Via Pushbuttons, Hot keys, or OSD( On Screen Display) -Quick View scan mode for monitoring selected computers -Hot Pluggable-add or remove computer for maintenance without powering down the switch. -Support Microsoft IntelliMouse (Pro), Optical Mouse, Logitech Mouse Man, Wheel Mouse, Scroll Point. -Security lock function for every Port. -Auto Scan interval 1~255 sec. -Supports VGA resolution up to 1600 x 1200 VESA DDC1/2B compatible. -Support DDC2B,correct Monitor type detection for each port. -Supports USB & PS/2 interface by T-M15UP transmit. -Supports USB & PS/2 Console. -Supports Max 200M Cat5 or Cat6 Cable. |
|
| Power
Supply Modules *Universal 100~240V AC input,12V DC output power adapter Module (UL/cUL/TUV/CE/FCC/CCC). *SH-SDD30-48S12:-48V DC input adapter Optional. *SH-SDD30-24S12:24V DC input adapter Optional. |
|
|
T-M15UP Cat5 Transmit *Supports PS/2 interface Keyboard & Mouse, USB Keyboard & Mouse for PC Server. *Supports VGA resolution up to 1600 x 1200 VESA DDC1/2B compatible. |
|
| Color *Available in black. (Colors available for OEM). |
|
|
Environmental Condition: Operation Temp.: 0~50 degree C Storage Temp.: -20~60 degree C Humidity: 10~90% |
|
| Dimensions | |
| W.482mm x D.181mm x H.44mm | |
| N.W. KGS | |
| G.W. KGS | |
| CUFT. | |
| Ordering Information: | |
| Model | Function | Computer port type | Console port type | KVM switch | Cable |
| SH-KVM-108C |
8-port
Cat5 KVM Switch |
RJ-45 for USB+PS/2 + VGA |
USB +PS/2 + VGA |
8-port | Cat5/Cat6 |
| SH-KVM-116C |
16-port
Cat5 KVM Switch |
RJ-45 for USB+PS/2 + VGA |
USB+PS/2 + VGA |
16-port | Cat5/Cat6 |
| SH-T-M15UP |
1-port
Cat5 KVM Transmit |
USB+PS/2 + VGA |
RJ-45 for SH-KVM-108C/116C |
The specifiction and
pictures are subject to change without notice.
