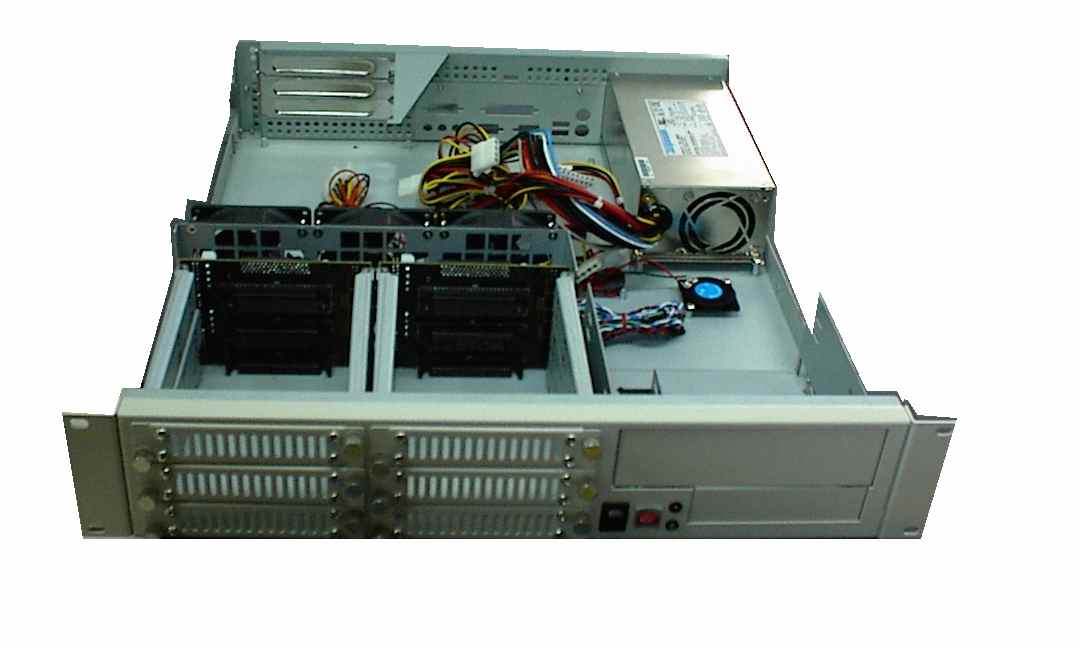

SH-1523 |
|
|
Specification |
|
| *SECC heavy-duty steel electroplated for chassis | |
| *3x8cm cooling fans | |
| *Space for 6 x 1" height hot-swappable SCA HDD | |
| *One Power ON/OFF switch and Reset switch at front panel | |
| *SH-1523-S:Space for ATX(12"x9.6"), Micro ATX M/B | |
| *SH-1523-L:Space for FULL-ATX(12"x13"), ATX, Micro ATX M/B | |
| *Space for 1 x 5.25" & 1 x 3.5" open | |
| *Riser Card: for three expansion PCI slot | |
| *Space for 300/400W ATX 2U P/S (UL ULc TUV CE) | |
| *Two LED indicators | |
| *3 SLOT SCA Backplane x 2(optional) | |
| Dimensions | |
| SH-1523S: Space for ATX(12"x9.6") | |
| W.482 mm x D.500 mm x H.88 mm | |
| N.W. 6 KGS | |
| G.W. 8 KGS | |
| CUFT. 2.3 | |
| SH-1523L: Space for Full-ATX(12"x13") | |
| W.482 mm x D.580 mm x H.88 mm | |
| N.W. 8 KGS | |
| G.W. 10 KGS | |
| CUFT. 2.8 | |
