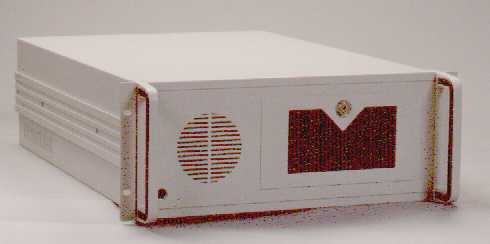

SH-2100 |
|
|
Features |
|
| *Aluminum front panel and handles. | |
| *Lockable front door for security and dust-proof operation. | |
|
*Front cooling fan with removable air filter(flow in), another fan at rear for power supply (flow out). |
|
| *Keyboard connectors available on both front and rear panel. | |
| *The height-adjustable hold-down clamp protects plug-in cards from vibration. | |
| *Suitable for 20 slots backplane.(20 slots ISA/19 slot PCI) | |
| *20 SLOTS REAR PANEL. | |
|
Specification |
|
| 0.05" SECC heavy-duty steel electroplated for chassis | |
| 0.12" aluminum plate for front panel | |
| For 2 x 5.25"FDD & 1 x 3.5"FDD & 2 x 3.5"HDD | |
| 1x8cm fan | |
| Speacker: 8 Ohm,0.4W 1.5" | |
| Dimensions | |
| W.483mm x D.610mm x H.177mm | |
| N.W. 17.5 KGS | |
| G.W. 20 KGS | |
| CUFT. 4.8 | |
| OPTIONAL POWER SUPPLY: | |
| PS/2 250W ~ 400W | |
