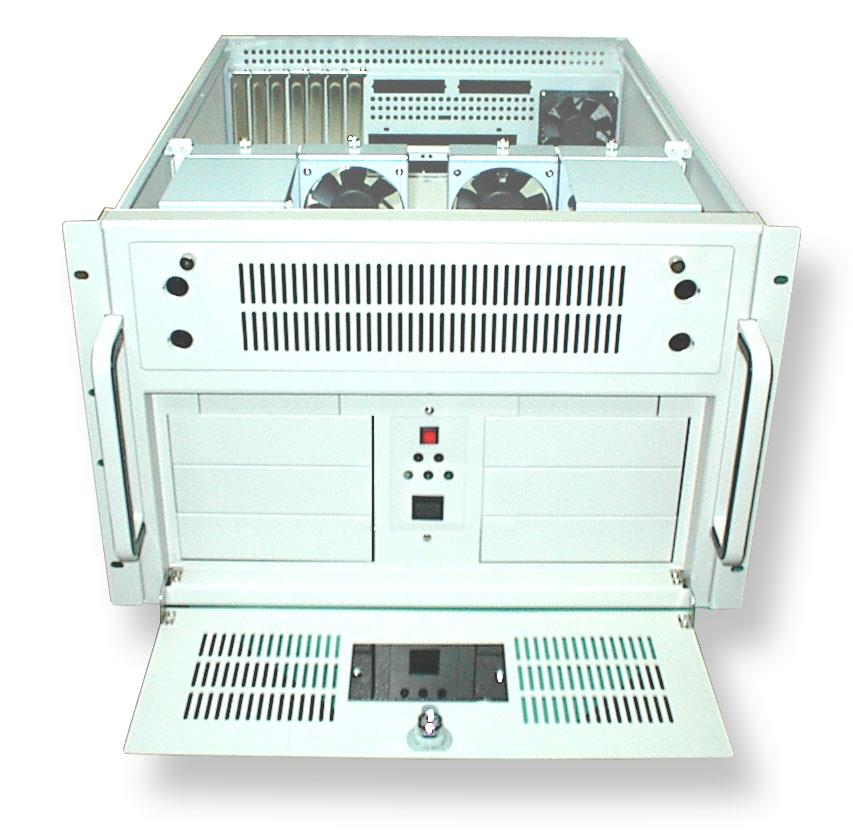

SH-2190 |
|
|
Specification |
|
| *0.05" SECC heavy-duty steel electroplated for chassis | |
| *Space for AT/ATX M/B or 14 slot BP. 20 slot BP for model SH-2190-20 | |
| *Aluminum handles. Plastic for model SH-2190c | |
| *Lockable front door for security and dust-proof operation. | |
|
*Eight cooling fan at front and rear |
|
| *Four keyboard connector in front panel | |
| *Space for 6 x 5.25" and 2 x 3.5" (open) | |
| *Space For 8x 3.5" HDD | |
| *Device for 4 x 3.5" HDD option | |
| *One Power ON/OFF switch and Reset switch at front panel and five LED indicators | |
| *Speacker: 8 Ohm,0.4W 1.5" | |
| *Space for two PS/2 type 250-400W P/S or 300-400W Redundant PSU (R3) | |
| Dimensions | |
| W.482mm x D.570mm x H.310mm(7U) | |
| N.W. 17.5 KGS | |
| G.W. 19 KGS | |
| CUFT. 7 | |
