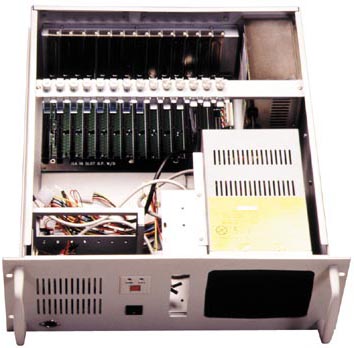

SH-3000 |
|
|
Specification |
|
| *0.05" SECC heavy-duty steel electroplated for chassis | |
| *Aluminum front panel and handles. | |
| *Suitable for ISA/PCI 8,12,14 slots backplane & baby-AT-size motherboard & ATX-size motherboard. | |
| *Optional rear panel: 8+4 slots, 12 slots and 14 slots rear panel.or ATX | |
| *5"TTL monochrome monitor with MCGP card | |
| *7" VGA monochrome monitor (optional) | |
| *Speacker: 8 Ohm,0.4W 1.5" | |
| *The height-adjustable hold-down clamp protects plug-in cards from vibration. | |
| *Dust-proof operation. | |
|
*One cooling fans |
|
| *One keyboard connector in front panel | |
| *For 1 x 3.5"FDD & 1 x 3.5"HDD DRIVER SPACE | |
| *One Power ON/OFF switch and Reset switch at front panel and two LED indicators | |
| *Space for PS/2 type 250-400W P/S | |
| Dimensions | |
| W.483mm x D.500mm x H.177mm | |
| N.W. 16 KGS | |
| G.W. 18 KGS | |
| CUFT. 4.2 | |
