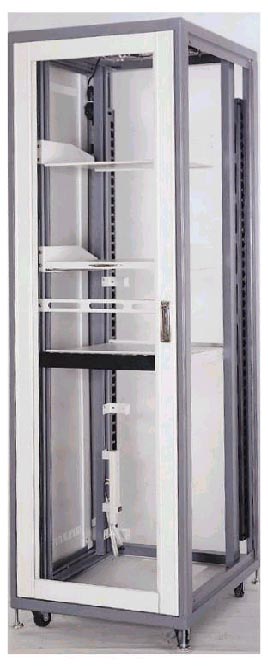

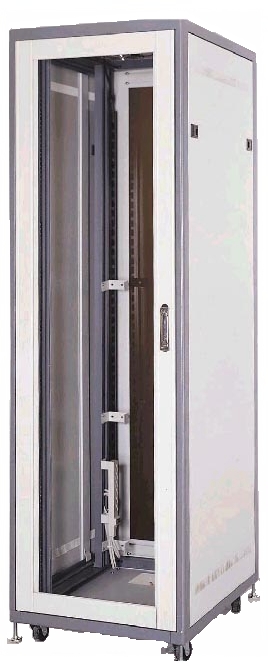

SH-38XX-XX
|
|
|
SH-38XX-XX |
|
Specification |
|
| *ALUMINUM REAR DOOR | |
| *Aluminum front door with ACRYLIC window | |
| *FANS MOTOR UNIT | |
| *6 HOLE POWER SUPPLY INSERT | |
| *PANEL SCREW CABLE FIXTURE | |
| *U/L APPROVAL PASSED | |
| *CE APPROVAL PASSED | |
| Inside Dimensions | |
| SH-3815-60 | W.483mm x D.551mm x H 667mm(15U) |
| SH-3830-60 | W.483mm x D.551mm x H1333mm(30U) |
| SH-3835-60 | W.483mm x D.551mm x H1556mm(35U) |
| SH-3841-60 | W.483mm x D.551mm x H1822mm(41U) |
| SH-3815-75 | W.483mm x D.661mm x H 667mm(15U) |
| SH-3830-75 | W.483mm x D.661mm x H1333mm(30U) |
| SH-3835-75 | W.483mm x D.661mm x H1556mm(35U) |
| SH-3841-75 | W.483mm x D.661mm x H1822mm(41U) |
| SH-3815-90 | W.483mm x D.811mm x H 669mm(15U) |
| SH-3830-90 | W.483mm x D.811mm x H1336mm(30U) |
| SH-3835-90 | W.483mm x D.811mm x H1558mm(35U) |
| SH-3841-90 | W.483mm x D.811mm x H1825mm(41U) |
| Outside Dimensions | |
| SH-3815-60 | W.600mm x D.600mm x H 835mm (15U) |
| SH-3830-60 | W.600mm x D.600mm x H1501mm (30U) |
| SH-3835-60 | W.600mm x D.600mm x H1722mm (35U) |
| SH-3841-60 | W.600mm x D.600mm x H1990mm (41U) |
| SH-3815-75 | W.600mm x D.750mm x H 835mm (15U) |
| SH-3830-75 | W.600mm x D.750mm x H1501mm (30U) |
| SH-3835-75 | W.600mm x D.750mm x H1722mm (35U) |
| SH-3841-75 | W.600mm x D.750mm x H1990mm (41U) |
| SH-3815-90 | W.600mm x D.900mm x H835mm(15U) |
| SH-3830-90 | W.600mm x D.900mm x H 1501mm(30U) |
| SH-3835-90 | W.600mm x D.900mm x H1722mm(35U) |
| SH-3841-90 | W.600mm x D.900mm x H1990mm(41U) |
