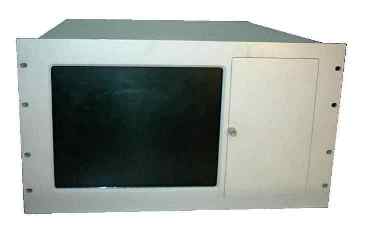

SH-5600 |
|
|
Specification |
|
| *0.05" SECC heavy-duty steel electroplated for chassis | |
| *W/ Space for 14 slot ISA/PICMG BP/ Baby AT/ATX (optional) | |
| *NEMA 4 (IP 56)/ NEMA 12 (IP 52) at front panel | |
| *W/ 12.1" color TFT LCD display | |
| *W/ Resolution: 800 (H) x 600 (V) | |
|
*W/ Cooling fan: 3 x 37CFM fan (flow in) inside,1 x 8cm (flow out) |
|
| *Keypad: 66 data-entry with 10 function keys | |
| *3 x 5.25"FDD & 1 x 3.5"FDD & 1 x 3.5"HDD DRIVE SPACE | |
| *Tinted, scratch-resistant antiglare display shield | |
| *W/ Touch screen (optional) | |
| *Space for PS/2 type 250~400W P/S OR Redundand P/S | |
| Dimensions | |
| W.483mm x D.500mm x H.265.9mm(6U) | |
| N.W. 15 KGS | |
| G.W. 17 KGS | |
| CUFT. 4.1 | |
