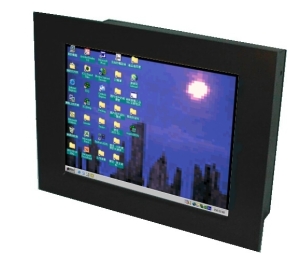

SH-5913B (12.1" Fan less PANEL PC)


12.1 TFT LCD panel PC
Resolution 800x600 for 12.1 TFT display
Luminance:250 cd/m2
Contrast ratio:300:1
Viewing angle:95/120 (V/H)
MAX COLOR:mort than 262,144 colors.

Processor :

Supports VIA C3 376 PIN EBGA type F.S.B. 100/133 MHz
VIA C3 series Processor 800 MHz speed .
Lowest Voltage / Power consumption .
Integrated full-speed 192KB L1/L2 cache .
133MHz Front side bus .
Advanced multimedia instruction set for MMX, 3Dnow

Chipset :
VIA PN133T Twister
V8606 and VT82C686B Chipset.

Memory :
Supports PC 133/100 SDRAM DIMM
Two DIMM socket up to 1GB
Mixed 2M/4M/8M/16M/32M x N DRAMs type.

PCI Bus Master IDE :
Dual channel master mode PCI support four enhanced IDE devices
Support PIO mode to 4 and ATA 33/66/100 IDE device

Graphic: :
Integrated Pro Savage 4 2D/3D Video Accelerator
Full internal AGP 4X performance
supports 8/16/32Mbyte of frame buffer use system memory
High quality DVD Video Playback
Motion Video Architecture
2D/3D resolutions up to 1920 X 1440

AC97 2.1 compliant
Dual full-duplex direct sound

TV out (optional) :
Supports NTSC/PAL TV out
Automatic detection of TV presence
Simultanous display CRT with TV

Compliant to PCI-2.2 use Realtek RLT8100B chipset
Supports 10Mb/S and 100Mb/s Fast Ethernet
Supports Wake On LAN function
Supports Full Duplex Flow Control (IEEE 802.X)
PXE function support

I/O specification
3x serial ports supports RS232 spec.
1x serial port supports RS232/422/485 selectable
4x serial ports w/ selectable Voltage RI/+5V/+12V
2x parallel ports for ECP/EPP/SPP spec
1x DIO port (Digital Input Output) supports 4 Input and 4 Output solution
DIO port address 445h (low data input, High data Output)(option)

Expansion PISA slot riser card
1x PISA slot expansion riser card supports for one PCI-2.1 or ISA slot
Other function
One 32pin socket for DOC (Disk On Chip) memory
DOC 8MB up to 576MBl Provide embedded , IA ,POS or special application
Watch Dog function Can select 0-255 sec to system RESET or NMI function

Back Panel I/O connector
1x mini DIN-6 PS2 Keyboard / Mouse ports or PS2 Keyboard.
1x mini DIN-6 PS2 mouse
1x RJ45 LAN port
2x compatible DB-9 serial RS232 ports,
COM2 RS232/422/485.
1x SPP/EPP/ECP DB-25 parallel port
1x DB-15 VGA port
2x USB ports

Inside Connectors
1x 5pin PS2 Keyboard connector
1x 5pin PS2 Mouse connector
2x connector for external Dual USB ports
2x 10-pin connector for external serial port
1x parallel port for LPT2
1x Floppy connector
2x IDE ports and 1x 2.0mm(44pin) IDE2 port
1x connector for IrDA
1x ATX power supply connector
1x AT power supply connector
2x FAN connector for CPU and System
1x AUDIO port for Line out and Line in and MIC in
1x CD in connector
1x Video in connector ( The Audio Signals in Video )
1x AUX in connector
1x TV-out port for S-Video
1x DIO port for 4 pin Input and 4 pin Output
1x Front Panel connector (Power button /Reset/PW LED/HDD LED/LAN LED Speaker)

Award BIOS version 6.1
Support DMI 2.0 function
ACPI v1.0 compliant
APM v1.2 compliant
Windows 9x/ME/2000 Plug and play BIOS
PXE function

Other Spec.
Aluminum made front panel,meet NEMA4 or IP65 standard
Fanless Design
Meet VESA standard  ARM mounting hold
Space for 2.5" HDD x 1
Operating temperature: 0 C ~50 C
Storage temperature: -20 C ~60 C
Touch screen:Resistive(optional)
Surface Hardness3H
Optical Clarity
80 %
Operating Temperature
0C ~ 50C
Endurance Test
Over 1 million strikes
Operating Voltage
DC 5 ~ 12 V
200W ~ 900W
< 1.5%
Faceplate Surface
Anti-glare coating
Operation Pressure
Storage Temperature
-20C ~ 70C
Message Noise
5 m sec ~ 15 m sec
Operating Current
5mA ~ 25mA
Isolation Resistance
DC25V 20MW
Inside Power supply
-Dc12v input +5v/+12v/+3.3v/-12v/+5vsb output
Outside Power supply adapter
-Input voltage 100~240 VAC
-12v dc output 60 w
-Frequence 50~60 Hz
-UL/CE/FCC approved
W.402mm x H.302mm x D.126mm

The specifiction and pictures are subject to change without notice.
All trademarks and logos are the properties of their respective holders.
