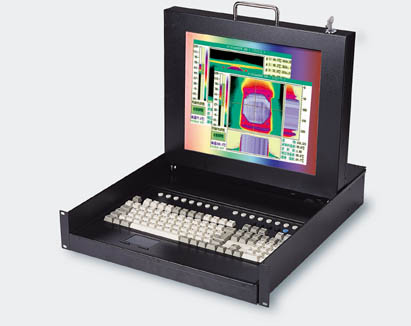

SH-6570  Series

SH-6570-5

Specification

*Heavy-duty steel electroplated for chassis
*Only 2U 5 IN 1 Drawer (KVMA switch, KB, LCD, MOUSE,Speaker)
Flat Panel
*17" TFT LCD Panel Resolution 1280x1024
*15" TFT LCD Panel Resolution 1024x768
*19" TFT LCD Panel Resolution 1280x1024
*Built-in 8 languages OSD controls.
*Automatic flat panel shut-off when monitor is in the closed position
Keyboard
*105 key ALPS® mechanical key switches English Keyboard, compatible to IBM PC/AT, PS/2 keyboard, supports Windows function keys (German, French, Chinese, Japanese....optional)
Mouse
*Logitech®  Touchpad (Microsoft mouse compatible with PS/2 mouse interface)

KVMA switch
*Up to eight Keyboard/VGA/Mouse/Audio  inputs (
16PCS)
*Cascade control up to 128 PCS
*PS/2 and Serial Mouse Emulation Provided for System Bootup
*No software Required-Computer selection Via Pushbuttons, Hot keys,  or OSD( On Screen Display)
*Quick View scan mode for monitoring selected computers
*Hot Pluggable-add or remove computer for maintenance without powering  down the switch .
*Scan  interval 3,8,15,30  sec.
Power Supply
12V DC input( includes universal 100~240V AC input,12V DC output power supply adapter)
*(24V/-48V DC input adapter optional)
Color
*Available in black and beige. (Colors available for OEM)
Optional
*UL-2919 rated 3-in-1 cables set with VGA, keyboard (PS/2), Mouse (PS/2),and Audio cable. (1.8M,3M,6M Optional)
SH-6570-4

Specification

*Only 2U 4 IN 1 Drawer (KVM switch, KB, LCD, MOUSE) (Same as SH-6570-5 Without Audio function)
SH-6570-3

Specification

*Only 2U 3 IN 1 Drawer (KB, LCD, MOUSE) (Same as SH-6570-4 without KVM Switches)
Dimensions
W.482mm x L.510mm x H.88mm
N.W.  16   KGS
G.W.  18   KGS
CUFT.
Ordering Information:
Model Display Size Resolution KVM switch
Panel Input Signal
SH-6570-3-19-XX-C 19" TFT 1280 X1024 1600 x1200

1280 x1024

1024 x768

800
x600

640
x480

NO
SH-6570-4(108)-19-XX-C 8-port
SH-6570-4(116)-19-XX-C 16-port
SH-6570-3-17-XX-C 17" TFT 1280 X1024 NO
SH-6570-4(108)-17-XX-C 8-port
SH-6570-4(116)-17-XX-C 16-port
SH-6570-3-15-XX-C 15" TFT 1024 X768 NO
SH-6570-4(108)-15-XX-C 8-port
SH-6570-4(116)-15-XX-C 16-port
XX=US,GR,FR,CH,JP....(Keyboard languages)
C  =B(BLACK), W(BEIGE)
