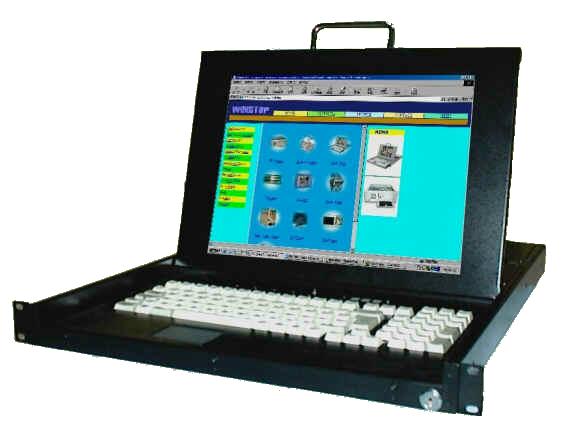

SH-6590 Series (SUN 1/8/16/24 Port 1U) |
|
| SH-6590 | |
|
Specification |
|
| *Heavy-duty steel electroplated for chassis | |
| *Only 1U 3 IN 1 & 4 IN 1 Drawer(KVM switch, KB, LCD, MOUSE) | |
| Keyboard *105 key ALPS® mechanical key switches English Keyboard, compatible to IBM PC/AT, PS/2 keyboard, supports Windows function keys (German, French, Chinese, Japanese....optional) |
|
| Video
*15" TFT LCD Panel -Resolution 1024x768,1152x900(sun) -Contrast ratio:500:1 -Brightness:300cd/m2 -Display colors:16.7M -Built-in 5 languages OSD controls -Backlight lifetime: >50,000 hrs. -Automatic flat panel shut-off when monitor is in the closed position, or no signal input. |
|
| Mouse *Logitech® Touchpad (Microsoft mouse compatible with PS/2 mouse interface) |
|
| KVM
switch (Built-in AVOCENT®
KVM Switch) *SMARTVIEW AVOCENT® (SV200-108) *AUTOVIEW AV200 CYBEX® (AV200-108) *AUTOVIEW AV400 CYBEX® (AV400-208) *AUTOVIEW AV416 AVOCENT® (AV416-216) *AUTOVIEW AV424 AVOCENT® (AV424-224) |
|
| Power
Supply: *System power:12V DC input( Includes universal 100~240V AC input,12V DC output power adapter) *UL/cUL/TUV/CE/FCC *(24V/-48V DC input adapter optional) |
|
| Option *Cables set for SUN. *Cables set for PC. *Cables set for USB. |
|
| Color *Available in black. (Colors available for OEM) |
|
| Dimensions | |
| W.482mm x L.560mm x H.44mm | |
| N.W. 14 KGS | |
| G.W. 15 KGS | |
| CUFT. 2.72 | |
| Ordering Information: | |
| Model | Display Size | Resolution | KVM switch | CONSOLE | Multi-plate |
| SH-6590-15-XX-C | 15" TFT | 1024
x 768 (PC/MAC/SUN) 1152 x 900 |
NO | 1 | PS2/USB(PC/MAC/SUN) |
| SH-6590-SV(108)-15-XX-C | 8PORT | 1 | PS2 | ||
| SH-6590-AV200(208)-15-XX-C | 8PORT | 2 | PS2 | ||
| SH-6590-AV400(208)-15-XX-C | 8PORT | 2 | PS2/USB/SUN | ||
| SH-6590-AV416(216)-15-XX-C | 16PORT | 2 | PS2/USB/SUN | ||
| SH-6590-AV424(224)-15-XX-C | 24PORT | 2 | PS2/USB/SUN |
| XX=US,GR,FR,CH,JP....(Keyboard languages) |
| C =B (Black Color) |
The specifiction and
pictures are subject to change without notice.
All trademarks and logos are the properties of their respective holders.
