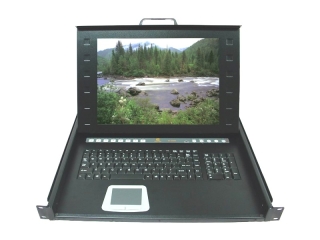

SH-6610 Series (1U/16 port) |
|
| SH-6610-4 | |
|
Specification |
|
| *Heavy-duty steel electroplated for chassis | |
| *Only 1U 4 IN 1 Drawer(KVM switch, KB, LCD, MOUSE) | |
| Keyboard *105 key Keyboard, compatible to IBM PC/AT, PS/2 keyboard, supports Windows function keys (Germany, English, French, Italian, Spanish, Japanese, Chinese, UK....optional) *105 key USB keyboard, for SH-6610-3U and SH-6610-4(108AU) |
|
| Video *15" TFT LCD Panel -Panel Resolution 1024x768 -Input Signal Resolution: 1600x1200, 1280x1024, 1024x768, 800x600, 640x480..... zoom to 1024x768 (1152x900 for sun-micro system optional) -Contrast ratio:500:1 -Brightness:300cd/m2 -Display colors:16.7M -Built-in 8 languages OSD controls -Backlight lifetime: 50,000 hrs. -Automatic flat panel shut-off when monitor is in the closed position, or no signal input. |
|
| Mouse *PS/2 Touchpad (Microsoft mouse compatible with PS/2 mouse interface) *USB Touchpad for SH-6610-3U and SH-6610-4(108AU/116AU) *& Wireless Mouse Option |
|
|
PS/2
KVM
switch
(108LD/108HD/116HD) -Supported OS DOS,Win NT/9x/2000/Me/XP,Linux,Unix,Novell,Free BSD. -Up to 8,16 Keyboard/VGA/Mouse inputs (8,16 PCs) -Cascade control Max. up to 4096 PCS -PC port keep alive capability, KVM powering down all PCs still keep active. -Intelligent keyboard and mouse simulation, all PCs can booting in the same time. -PS/2 and Serial Mouse Emulation Provided for System Bootup -No software Required-Computer selection Via Pushbuttons, Hot keys, or OSD( On Screen Display) -Quick View scan mode for monitoring selected computers -Hot Pluggable-add or remove computer for maintenance without powering down the switch . -Support Microsoft IntelliMouse (Pro), Optical Mouse, Logitech Mouse Man, Wheel Mouse, Scroll Point.. -Security lock function. (OSD) -Built-in 3 languages OSD controls. (Germany, French, English) -Auto Scan interval 5~255 sec. -Supports VGA resolution up to 1920 x 1440 VESA DDC1/2B compatible (108A/116A/208A/216A) -Up to 8/16 Keyboard/VGA/Mouse inputs (8/16PCS) -Cascade control up to 128 PCS -No software Required-Computer selection Via Hot keys, or OSD( On Screen Display) -Quick View scan mode for monitoring selected computers -Hot Pluggable-add or remove computer for maintenance without powering down the switch . -Auto Scan interval 3~60 sec. -Support eight characters password protection and search PC server name. -Built-in one extra daisy chain port and no waste any PC port. -Support one CAT5 remote console up to 500 feet away from KVM switch.(208A/216A only) USB KVM Switch (108AU/116AU) -Up to 8/16 VGA/USB inputs (8/16PCS) -USB 1.1 Specification compliant. -Cascade control up to 128 PCS -No software Required-Computer selection Via Hot keys, or OSD( On Screen Display) -Quick View scan mode for monitoring selected computers -Hot Pluggable-add or remove computer for maintenance without powering down the switch . -Auto Scan interval 5~99 sec. -Support UHCI, OHCI USB interface. -Support Win98/98SE/ME/2000/XP,WinNT, HP Unix, Linux, Sun Solaris, MAC O.S 8.6 or later version. -Manage multiple PCs, G3/G4 MACs, SUN Microsystems with USB port from one USB keyboard, USB Mouse and Monitor. -Support eight characters password protection and search PC server name. -Built-in one extra daisy chain port and no waste any PC port. |
|
| Power
Supply: *System power:12V DC input( Includes universal 100~240V AC input,12V DC output power adapter) *UL/cUL/TUV/CE/FCC *(24V/-48V DC input adapter optional) |
|
| Cable *UL-2919 rated 3-in-1 cables set with VGA, keyboard, Mouse 1.8M 8/16 set(3M,6M Optional). |
|
| Color *Available in black. (Colors available for OEM) |
|
| Option *USB -> PS/2 adapter (Used for SUN micro/Mac/Pc) *RS-232 -> PS/2 adapter (Used for searial mouse port on system) |
|
|
Environmental Condition: Operation Temp.: 0~50 degree C Storage Temp.: -20~60 degree C Humidity: 10~90% |
|
| SH-6610-3 | |
|
Specification |
|
| *Only 1U 3 IN 1 Drawer (KB, LCD, MOUSE) (Same as SH-6610-4 without KVM Switch) | |
| Dimensions | |
| W.482mm x L.508mm x H.44mm | |
| N.W. 12 KGS | |
| G.W. 16 KGS | |
| CUFT. 2.72 | |
| Ordering Information: | |
| Model | Computer port type | Display Resolution | KVM switch | Cable |
| SH-6610-3-15-XX-C | PS2+VGA |
15" TFT LCD Panel: 1024 x768 Input signal: 1600 x1200 1280 x1024 1024 x768 800 x600 640 x480 |
NO | CB-K15P-xxx |
| SH-6610-3U-15-XX-C | USB&PS2+VGA | NO | CB-K15UP-xxx | |
| SH-6610-4(108A)-15-XX-C | PS2+VGA | 8-port PS/2 | CB-K15P-xxx | |
| SH-6610-4(116A)-15-XX-C | PS2+VGA | 16-port PS/2 | CB-K15P-xxx | |
| SH-6610-4(208A)-15-XX-C | PS2+VGA |
2 Console 8-port PS/2 |
CAT5 CB-K15P-xxx |
|
| SH-6610-4(216A)-15-XX-C | PS2+VGA |
2 Console 16-port PS/2 |
CAT5 CB-K15P-xxx |
|
| SH-6610-4(108AU)-15-XX-C | USB+VGA | 8-port USB | CB-K15U-xxx | |
| SH-6610-4(116AU)-15-XX-C | USB+VGA | 16-port USB | CB-K15U-xxx | |
| SH-6610-4(108LD)-15-XX-C | PS2+VGA | 8-port PS/2 | CB-KPS2-xxx | |
| SH-6610-4(108HD)-15-XX-C | PS2+VGA | 8-port PS/2 | CB-K15P-xxx | |
| SH-6610-4(116HD)-15-XX-C | PS2+VGA | 16-port PS/2 | CB-K15P-xxx |
| XX=Gr:Germany, En:English, Fr:French, It:Italian, Sp:Spanish, Ja:Japanese, Ch:Chinese, UK...(Keyboard languages) |
| C =B (Black Color) |
|
The specifiction and
pictures are subject to change without notice. |
