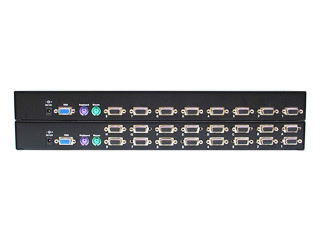

KVM-108D/116D
SH-6651 KVM Series
  8/16 Port Combo KVM switch with PS/2 console.
 (108D/116D)
-Supported OS DOS,Win NT/9x/2000/2003/Me/XP/7,Linux,Unix,Novell,Free BSD,Solaris.
-Up to 8,16 Keyboard/VGA/Mouse inputs (8,16 PCs)
-Cascade control Max. up to 128/256 PCs
-Intelligent keyboard and mouse simulation, all PCs can booting in the same time.
-No software Required-Computer selection Via Pushbuttons, Hot keys, or OSD( On Screen Display)
-Quick View scan mode for monitoring selected computers
-Hot Pluggable-add or remove computer for maintenance without powering down the switch .
-Support Microsoft IntelliMouse (Pro), Optical Mouse, Logitech Mouse Man, Wheel Mouse, Scroll Point.
-Security lock function for One Admin, four Users, and every Port.
-Provide ACL (Access Control List) Security Function, Store up to 4 Independent ACL’s of Controllable Computer List
-Auto Scan interval 1~255 sec.
-Supports VGA resolution up to 2048 x 1536  VESA DDC1/2B compatible
-Support DDC2B,correct Monitor type detection for each port
-Supports PS/2 interface by CB-K15P-xxx Cable.
-Supports USB interface for SUN Micro/Mac/PC by CB-K15U-xxx Cable.
-Supports Two console function for LCD KVM console drawer.
  Power Supply Modules
*Universal 100~240V AC input,12V DC output power adapter Module (UL/cUL/TUV/CE/FCC/CCC)
*SH-SDD30-48S12:-48V DC input adapter Optional
*SH-SDD30-24S12:24V DC input adapter Optional
  Cable
*CB-K15P-180:UL-2919 rated 3-in-1 cables set with VGA, PS/2 keyboard, PS/2 Mouse 1.8M (3M,5M,10M,20M, 30M Optional).
*CB-K15U-180:UL-2919 rated 3-in-1 cables set with VGA, USB keyboard & Mouse Used for SUN Micro/Mac/PC1.8M (3M,5M Optional).
  Color
*Available in black. (Colors available for OEM)


System Specifications



KVM-108D

KVM-116D

Function

8/16-port USB and PS/2 Rackmount combo KVM

Port Selection

Hot Key ,Push Buttons and OSD ( On Screen Display )

LED’s

On line

8 LED's (Green)

16 LED's (Green)

Selected

8 LED's (Red)

16 LED's (Red)

Console Port Connectors

Keyboard

PS/2 Keyboard

Mouse

PS/2 Mouse

Monitor

VGA HDB15F

CPU Port Connectors

Keyboard

HDB15F (8)

HDB15F (16)



Mouse

Monitor

Max. Connected Computers

Up to 128

Up to 256



Keyboard & Mouse Emulation

PS/2 or USB

VGA Resolution (Local)

2048 x 1536 @60Hz (Max)

Auto Scan Intervals

1 ~ 255 seconds

Operating Temperature

0° C ~ 50° C

Storage Temperature

-20° C ~ 60° C

Operating Humidity

0% ~ 80% non-condensing

Housing

Metal

Weight

2 kg

Dimension

410 (W) x 107 (D) x 43 (H) mm     (19” Rackmount, 1U)

Power Adapter

12VDC, 1A, External Power Adapter

Certification

FCC ,CE , RoHS
