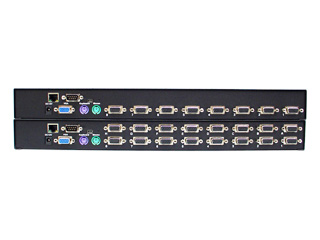

KVM-108IP-R/KVM-116IP-R |
|
| SH-6651 KVM Series | |
|
8/16 Port Combo KVM switch with IP console (KVM-108IP-R/KVM-116IP-R) -Supported OS DOS,Win NT/9x/2000/2003/Me/XP/7,Linux,Unix,Novell,Free BSD,Solaris. -Up to 8,16 Keyboard/VGA/Mouse inputs (8,16 PCs) -Cascade control Max. up to 128/256 PCs -Intelligent keyboard and mouse simulation, all PCs can booting in the same time. -No software Required-Computer selection Via Pushbuttons, Hot keys, or OSD( On Screen Display) -Quick View scan mode for monitoring selected computers -Hot Pluggable-add or remove computer for maintenance without powering down the switch . -Support Microsoft IntelliMouse (Pro), Optical Mouse, Logitech Mouse Man, Wheel Mouse, Scroll Point. -Security lock function for One Admin, four Users, and every Port. -Provide ACL (Access Control List) Security Function, Store up to 4 Independent ACL’s of Controllable Computer List -Auto Scan interval 1~255 sec. -Supports VGA resolution up to 2048 x 1536 VESA DDC1/2B compatible -Support DDC2B,correct Monitor type detection for each port -Supports PS/2 interface by CB-K15P-xxx Cable. -Supports USB interface for SUN Micro/Mac/PC by CB-K15U-xxx Cable. -Supports Two console function for LCD KVM console drawer. |
|
| Power
Supply Modules *Universal 100~240V AC input,12V DC output power adapter Module (UL/cUL/TUV/CE/FCC/CCC) *SH-SDD30-48S12:-48V DC input adapter Optional *SH-SDD30-24S12:24V DC input adapter Optional |
|

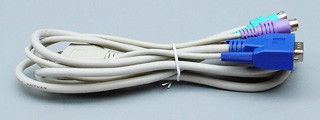

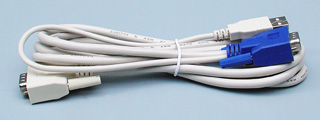

| Cable *CB-K15P-180:UL-2919 rated 3-in-1 cables set with VGA, PS/2 keyboard, PS/2 Mouse 1.8M (3M,5M,10M,20M, 30M Optional). *CB-K15U-180:UL-2919 rated 3-in-1 cables set with VGA, USB keyboard & Mouse Used for SUN Micro/Mac/PC1.8M (3M,5M Optional). |
|
| Color *Available in black. (Colors available for OEM) |
|
|
System Specifications |
|||
|
|
KVM-108IP-R |
KVM-116IP-R |
|
|
Function |
8/16-port USB and PS/2 Rackmount combo KVM |
||
|
Port Selection |
Hot Key ,Push Buttons and OSD ( On Screen Display ) |
||
|
LED’s |
On line |
8 LED's (Green) |
16 LED's (Green) |
|
Selected |
8 LED's (Red) |
16 LED's (Red) |
|
|
Console Port Connectors |
Keyboard |
PS/2 Keyboard |
|
|
Mouse |
PS/2 Mouse |
||
|
Monitor |
VGA HDB15F |
||
|
CPU Port Connectors |
Keyboard |
HDB15F (8) |
HDB15F (16)
|
|
Mouse |
|||
|
Monitor |
|||
|
Max. Connected Computers |
Up to 128 |
Up to 256
|
|
|
Keyboard & Mouse Emulation |
PS/2 or USB |
||
|
VGA Resolution (Local) |
2048 x 1536 @60Hz (Max) |
||
|
Auto Scan Intervals |
1 ~ 255 seconds |
||
|
IP-Based Remote console |
RJ-45 8P8C for 10/100M Ethernet, |
||
|
Operating Temperature |
0° C ~ 50° C |
||
|
Storage Temperature |
-20° C ~ 60° C |
||
|
Operating Humidity |
0% ~ 80% non-condensing |
||
|
Housing |
Metal |
||
|
Weight |
2 kg |
||
|
Dimension |
410 (L) x 107 (W) x 44 (H) mm (19” Rackmount, 1U) |
||
|
Power Adapter |
12VDC, 2A, External Power Adapter |
||
|
Certification |
FCC ,CE , RoHS |
||
The
specifications and
pictures are subject to change without notice.
