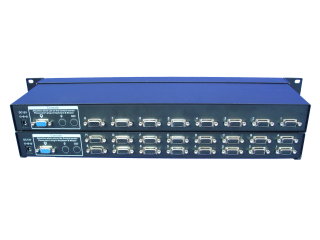

SH-6651
SH-6651

Specification
  8,16 PORT KVM switch Module (USB + PS/2)
Sun Micro System supported.
  *Heavy-duty steel electroplated for chassis
  KVM switch Modules (USB + PS/2)
8/16 Port KVM switch
 (108B/116B)
-Supported OS DOS,Win NT/9x/2000/2003/Me/XP,Linux,Unix,Novell,Free BSD,Solaris.
-Up to 8,16 Keyboard/VGA/Mouse inputs (8,16 PCs)
-Cascade control Max. up to 64/256 PCS
-Intelligent keyboard and mouse simulation, all PCs can booting in the same time.
-No software Required-Computer selection Via Pushbuttons, Hot keys, or OSD( On Screen Display)
-Quick View scan mode for monitoring selected computers
-Hot Pluggable-add or remove computer for maintenance without powering down the switch .
-Support Microsoft IntelliMouse (Pro), Optical Mouse, Logitech Mouse Man, Wheel Mouse, Scroll Point..
-Security lock function for every Port.
-Auto Scan interval 1~255 sec.
-Supports VGA resolution up to 2048 x 1536  VESA DDC1/2B compatible
-Support DDC2B,correct Monitor type detection for each port
-Supports PS/2 interface by CB-K15P-xxx Cable.
-Supports USB & PS/2 interface for SUN Micro/Mac/PC by CB-K15UP-xxx Cable.
(108BS/116BS)
-Supports Two console.
  Power Supply Modules
*Universal 100~240V AC input,12V DC output power adapter Module (UL/cUL/TUV/CE/FCC/CCC)
*SH-SDD30-48S12:-48V DC input adapter Optional
*SH-SDD30-24S12:24V DC input adapter Optional
  Cable
*CB-K15P-180:UL-2919 rated 3-in-1 cables set with VGA, keyboard (PS/2), Mouse (PS/2) 1.8M (3M,5M,10M,20M, 30M Optional).
*CB-K15UP-180:UL-2919 rated 3-in-1 cables set with VGA, keyboard & Mouse (USB&PS/2) Used for SUN Micro/Mac/PC1.8M (3M,5M,10M,20M, 30M Optional).
  Color
*Available in black. (Colors available for OEM)
  Environmental Condition:
Operation Temp.: 0~50 degree C
Storage Temp.: -20~60 degree C
Humidity: 10~90%
Dimensions
  W.482mm x L.137mm x H.44mm
  N.W.    KGS
  G.W.      KGS
  CUFT.
Ordering Information:
Model Computer port type Console port type KVM switch Cable
SH-6651(108B) PS/2 + VGA

USB+PS/2 + VGA

PS/2 + VGA

 8-port CB-K15P-xxx

CB-K15UP-xxx

SH-6651(116B) PS/2 + VGA

USB+PS/2 + VGA

PS/2 + VGA

 16-port CB-K15P-xxx

CB-K15UP-xxx

SH-6651(108BS) PS/2 + VGA

USB+PS/2 + VGA

PS/2 + VGA

 8-port
Two console		 CB-K15P-xxx

CB-K15UP-xxx

SH-6651(116BS) PS/2 + VGA

USB+PS/2 + VGA

PS/2 + VGA

 16-port
Two console		 CB-K15P-xxx

CB-K15UP-xxx

C=B:Black Color(Color Code)

P=AC:Universal 100~240V AC Input 12V DC output Power Adapter
    24:DC 24V Input 12V DC output Power Adapter
     48:DC -48V Input 12V DC output Power Adapter

xxx=180:180cm cable
         300:300cm cable
         500:500cm cable
         1000:10m cable
         2000:20m cable
         3000:30m cable


The specifiction and pictures are subject to change without notice.
All trademarks and logos are the properties of their respective holders.
