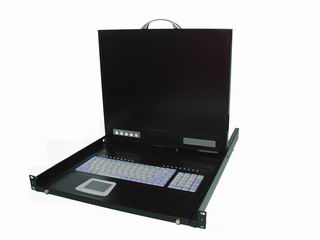

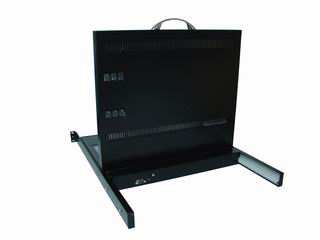

SH-6660
SH-6660

Specification
  All Modularized Design
19" Widescreen TFT LCD Module
20" TFT LCD Module (Support Multi-Sync)
8,16 PORT KVM switch Module (USB + PS/2)
8 Language Keyboard Module
Easy Change Modular. (Tooling loss Design.)
One person Quick and easy installation.
Sun Micro System supported.
  *Heavy-duty steel electroplated for chassis
  *Only 1U 4 IN 1 Drawer(LCD, KB, MOUSE,KVM Switch)
  Keyboard Modules
*105 key Keyboard, compatible to IBM PC/AT, PS/2 keyboard, supports Windows function keys (Germany, English, French, Italian, Spanish, Japanese, Chinese, UK....optional)
*PS/2 Touchpad (Microsoft mouse compatible with PS/2 mouse interface)
Full Wheel Mouse emulation.Left, middle and right button emulation.
  TFT LCD Modules
*20" TFT LCD Panel Module
-Panel Resolution 1400 x1050 /1600 x 1200
-Built-in 8 languages OSD controls
-Backlight lifetime: 50,000 hrs.
-Sun Micro System Multi-Sync Supported.
-Sun Micro System 1152x900 Resolution Supported.
-Automatic flat panel shut-off when monitor is in the closed position, or no signal input.

*19" TFT LCD Panel Module
-Panel Resolution 1440 x900 /1366 x768 /1920 x1080


KVM switch Modules (USB+PS2)
8/16 Port KVM switch
(108D/116D)
-Supported OS DOS,Win NT/9x/2000/2003/Me/XP/10,Linux,Unix,Novell,Free BSD,Solaris.
-Up to 8,16 Keyboard/VGA/Mouse inputs (8,16 PCs)
-Cascade control Max. up to 64/256 PCS
-Intelligent keyboard and mouse simulation, all PCs can booting in the same time.
-No software Required-Computer selection Via Pushbuttons, Hot keys, or OSD( On Screen Display)
-Quick View scan mode for monitoring selected computers
-Hot Pluggable-add or remove computer for maintenance without powering down the switch .
-Support Microsoft IntelliMouse (Pro), Optical Mouse, Logitech Mouse Man, Wheel Mouse, Scroll Point..
-Security lock function. (OSD)
-Auto Scan interval 1~255 sec.
-Supports VGA resolution up to 2048 x 1536  VESA DDC1/2B compatible
-Support DDC2B,correct Monitor type detection for each port
-Supports PS/2 interface by CB-K15P-xxx Cable.
-Supports USB interface for SUN Micro/Mac/PC by CB-K15U-xxx Cable.
-Supports Two PS/2  Console.

(108E/116E/132E)
-Supports Two Console.
-Supports Cat5/6 PC port (By 101T Modular)

(108IP-R/116IP-R)

-Supports One local Console & One IP Console.

  Power Supply Modules
*Universal 100~240V AC input,12V DC output power adapter Module (UL/cUL/TUV/CE/FCC/CCC)
*SH-SDD30-48S12:-48V DC input adapter Optional
*SH-SDD30-24S12:24V DC input adapter Optional
  Cable
*CB-K15P-180:UL-2919 rated 3-in-1 cables set with VGA, keyboard (PS/2), Mouse (PS/2) 1.8M (3M,5M,10M,20M, 30M Optional).
*CB-K15UP-180:UL-2919 rated 3-in-1 cables set with VGA, keyboard & Mouse (USB&PS/2) Used for SUN Micro/Mac/PC1.8M (3M,5M,10M,20M, 30M Optional).
  Color
*Available in black. (Colors available for OEM)
  Environmental Condition:
Operation Temp.: 0~50 degree C
Storage Temp.: -20~60 degree C
Humidity: 10~90%

Dimensions
  W.482mm x L.610mm x H.44mm
  N.W.   18 KGS
  G.W.    22  KGS
  CUFT.   2.95
Ordering Information:
Model Computer port type TFT Display   KVM switch Cable
SH-6660-3-T-K-C-P PS/2
USB+PS/2

20" TFT LCD
  Panel Resolution
1400 x1050


Monitor Support Input signal:
1600 x 1200
1400 x 1050
1280 x 1024
1024 x 768
800 x 600
640 x 480

1152 x 900
for SUN Micro System

 NO CB-K15P-xxx
CB-K15UP-xxx
SH-6660-4(108D)-T-K-C-P PS/2
USB 		8-port
 		 CB-K15P-xxx
CB-K15U-xxx
SH-6660-4(116D)-T-K-C-P PS/2
USB 		16-port CB-K15P-xxx
CB-K15U-xxx
SH-6660-4(108BS)-T-K-C-P PS/2
USB+PS/2		 8-port
Two Console		 CB-K15P-xxx
CB-K15UP-xxx
SH-6660-4(116BS)-T-K-C-P PS/2
USB+PS/2		 16-port
Two Console		 CB-K15P-xxx
CB-K15UP-xxx
SH-6660-4(108IP-R)-T-K-C-P PS/2
USB 		8-port
Two Local & One IP Console		 CB-K15P-xxx
CB-K15U-xxx
SH-6660-4(116IP-R)-T-K-C-P PS/2
USB 		16-port
Two Local & One IP Console		 CB-K15P-xxx
CB-K15U-xxx
SH-6660-4(108C)-T-K-C-P (101T Module)
USB or PS/2		 8-port Cat 5
Two Console		 Cat 5
SH-6660-4(116C)-T-K-C-P (101T Module)
USB or PS/2
SH-6660-4(116C)-T-K-C-P (101T Module)
USB or PS/2		 16-port Cat 5
Two Console		 Cat 5

K=Gr:Germany keyboard ,(Keyboard languages)
      En:English keyboard,
      Fr:French keyboard,
      It:Italian keyboard,
      Sp:Spanish keyboard,
      Ja:Japanese keyboard,
      Ch:Chinese keyboard,
      UK: UK keyboard

C=B:Black Color(Color Code)

P=AC:Universal 100~240V AC Input 12V DC output Power Adapter
    24:DC 24V Input 12V DC output Power Adapter
    48:DC -48V Input 12V DC output Power Adapter

xxx=180:180cm cable
         300:300cm cable
         500:500cm cable
         1000:10m cable
         2000:20m cable
         3000:30m cable


The specifiction and pictures are subject to change without notice.
All trademarks and logos are the properties of their respective holders.
