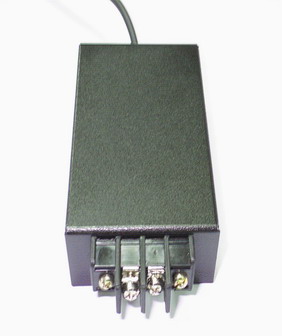

SH-SPA/SPP DC to DC Power supply |
|
|
Specification |
|
| *±12/±24/±48V DC input switching power supply | |
| *Wide range DC input | |
| *1000VDC I/O isolation | |
| *High effciency. | |
| *Protections:short circuit/over load/over voltage. | |
| *One year warranty | |
|
SPECIAL SIZE DC INPUT SWITCHING POWER SUPPLY |
||||||||||
| Model | DC-Input Voltage |
Output Voltage |
SAFETY (meet) | MENO | ||||||
| +3.3 | +5V | +12V | -5V | -12V | 5VSB | TOTAL | ||||
| SH-SPA72-12S12 | 10~16 -10~-16 |
6A | 72W | |||||||
| SH-SPA72-24S12 | 16~36 -16~-36 |
6A | 72W | |||||||
| SH-SPA72-48S12 | 36~72 -36~-72 |
6A | 72W | |||||||
| SH-SPA25-12S12 | 9~18 -9~-18 |
2.1A | 25W | |||||||
| SH-SPA30-24S12 | 18~36 -18~-36 |
2.5A | 30W | |||||||
| SH-SPA30-48S12 | 36~72 -36~-72 |
2.5A | 30W | |||||||
| SH-SPP80-1 | 12 | 5A | 7A | 2A | 0.2A | 0.5A | 80W | |||
| SH-SPP80-2 | 12 | 5A | 7A | 2A | 0.5A | 0.5A | 80W | |||
| SH-SPP90-1 | 14~19 | V | V | V | V | V | 90W | |||
|
SH-SDA AC to DC / SH-SDD DC to DC Adapter |
|
|
Specification |
|
| *16~72VDC/100~240VAC input switching power supply | |
| *12V DC output | |
| *Full range AC input/2:1 DC input | |
| *High effciency. | |
| *Protections:short circuit/over load/over voltage. | |
| *One year warranty | |
|
SPECIAL SIZE DC OUTPUT SWITCHING POWER SUPPLY ADAPTER |
||||||||||
| Model | Input Voltage |
Output Voltage |
SAFETY | MENO | ||||||
| +3.3 | +5V | +12V | -5V | -12V | 5VSB | TOTAL | ||||
| SH-SDD30-24S12 | DC ±16~36 | 2.5A | 30W | |||||||
| SH-SDD40-24S12 | DC ±16~36 | 3.33A | 40W | |||||||
| SH-SDD30-48S12 | DC ±36~72 | 2.5A | 30W | |||||||
| SH-SDD40-48S12 | DC ±36~72 | 3.33A | 40W | |||||||
| SH-SDA36-S12 | AC 100~240 | 3A | 36W | UL/CAS/TUV/CE | ||||||
| SH-SDA48-S12 | AC 100~240 | 4A | 48W | UL/CAS/TUV/CE | ||||||
| SH-SDA60-S12 | AC 100~240 | 5A | 60W | UL/CAS/TUV/CE | ||||||
| SH-SDA90-S12 | AC 100~240 | 7.5A | 90W | UL/CAS/TUV/CE | ||||||
